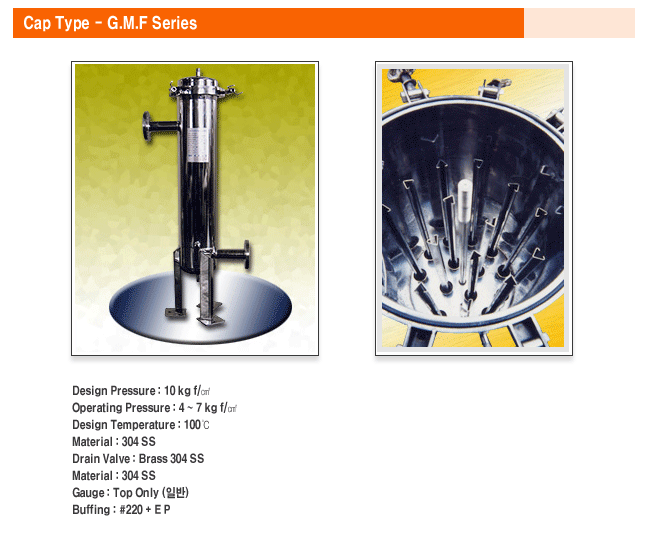

Model Code
In/Out
Size
Tank of
Overal
Height
Outside
Size
Length of
Bag
Quantity of
Cartridges
G1MF1
15A-25A
400
Ø140
250
1
G1MF2
500
500
G3MF1
15A-40A
500
Ø180
250
3
G3MF2
750
500
G3MF3
1000
750
G6MF1
25A-50A
500
Ø230
250
6
G6MF2
750
500
G6MF3
1000
750

※ 내부구조
1. Post + Pedestal + Cap + Spring + 누름판
2. Pedestal + Post + Cap (각개조립형, 가공품)
3. 기타 주문 사양
4. 설계 변경 가능

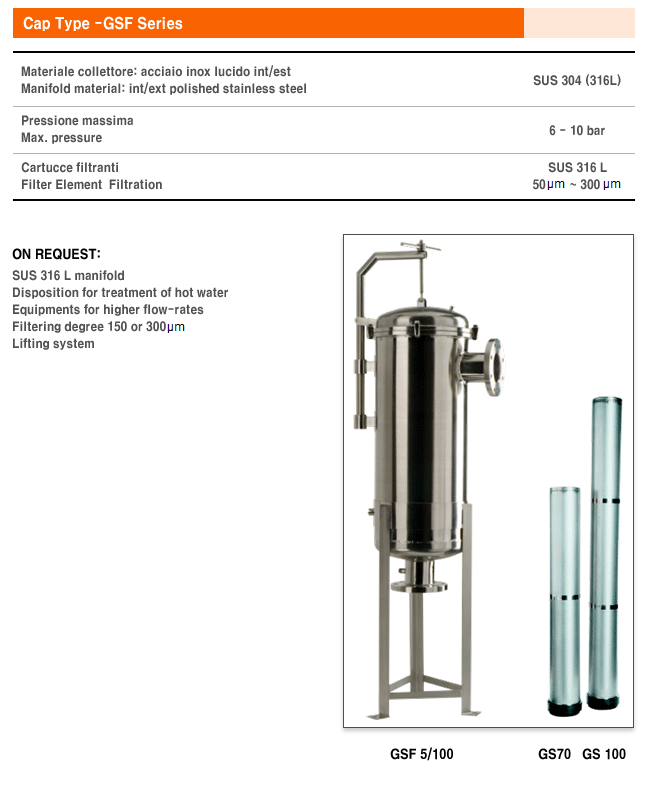

Filter Housing GSF 5/70 GSF 5/100 GSF 8/70 GSF 8/100 GSF 12/70 GSF12/100
Max. flow-rate  (m 3 /h) 160 200 250 320 385 480
Element  GS70 GS100 GS100 GS100 GS70 GS100
IN/OUT connections DN 150 DN 150 DN 150 DN 200 DN 200 DN 250
PN 10 PN 10 PN 6 PN 6 PN 6 PN 6


CHAMBER
Material (On request)  SUS 304 (SUS 316L)
Working pressure (max.)  6 - 10 bar
No. 1 spare o-ring  ●
No. 1 wrench for claws ●
Drain / Vent valve  ½” – ¼” Optional
No. 2 S/S pressure gauges 0-16 ∅ 50  Optional
Disposition for treatment of hot water   Optional
Anti-corrosion internal treatment for sea-water  Optional
Lifting system  Optional
Adjustable legs  Optional

GSF 5/70  GSF 5/100
Flow-rate:                      160 ㎥/h  Flow-rate:                      200 ㎥/h
IN/OUT connections:   DN150 – PN6       IN/OUT connections:   DN150 – PN6
Element :                  mod. GS 70 - SUS 316L Element :                  mod. GS 100 - SUS 316L
included:                       Filtration 50 µm~300µm included:                       Filtration 50 µm~300µm
Filtering surface: 10.600 ㎠ Filtering surface: 15.325 ㎠
